How to Recover Data from Virtual Disk Files (VMDK, VDI, VHD and VHDX)

Modified on: February 15, 2021 | 8048 views

Stellar Toolkit for Data Recovery facilitates data recovery from virtual disks created by software or virtual machines such as VMWare, Oracle Virtual Box, Hyper-V, or Disk Management tool in Windows.

The software supports all popular virtual disk formats such as,

Virtual Disk Image (VDI)
Hyper-V Virtual Hard Disk (VHDX)
Virtual Hard Disk (VHD)
Virtual Machine Disk (VMDK)

To recover data from a virtual disk by using Stellar Toolkit for Data Recovery, follow these steps:

Download, install and launch Stellar Toolkit for Data Recovery.
Select the file types from the option and click ‘Next.’

Stellar Toolkit for Data Recovery

TIP: You can go to ‘Settings>Add Header’ option to add a custom file format for data recovery.

Select ‘Virtual Machine Recovery’ and click ‘Scan.’

Recover From

Click ‘Add Image’ to browse and select the virtual disk image file. You may use the ‘Find Image’ option to locate the hidden or missing virtual drive

Virtual Machine Image Selection

After adding the image, click ‘Mount’. The software mounts the virtual disk and displays all the partitions

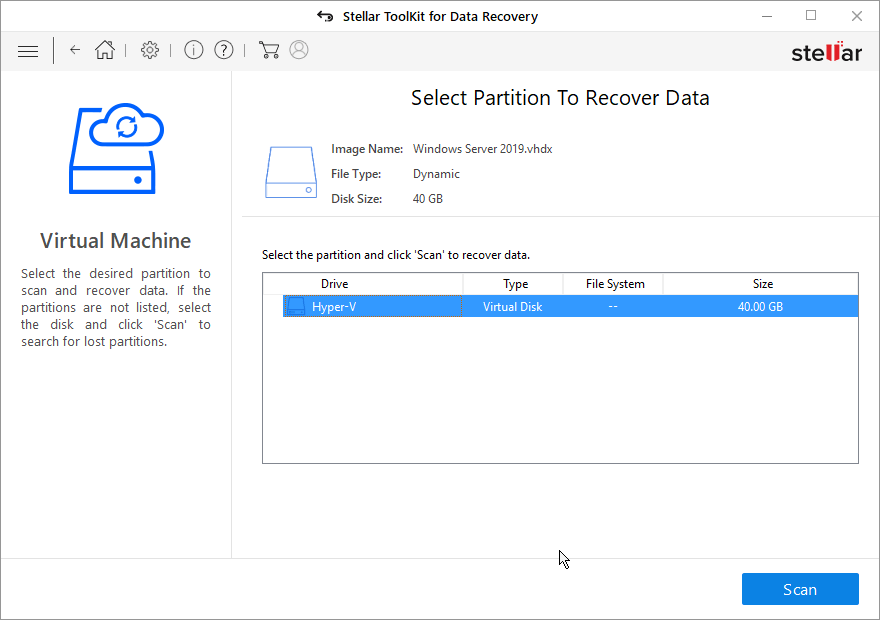

Select Partition To Recover Data

Select the partition that contains the required data and click ‘Scan.’

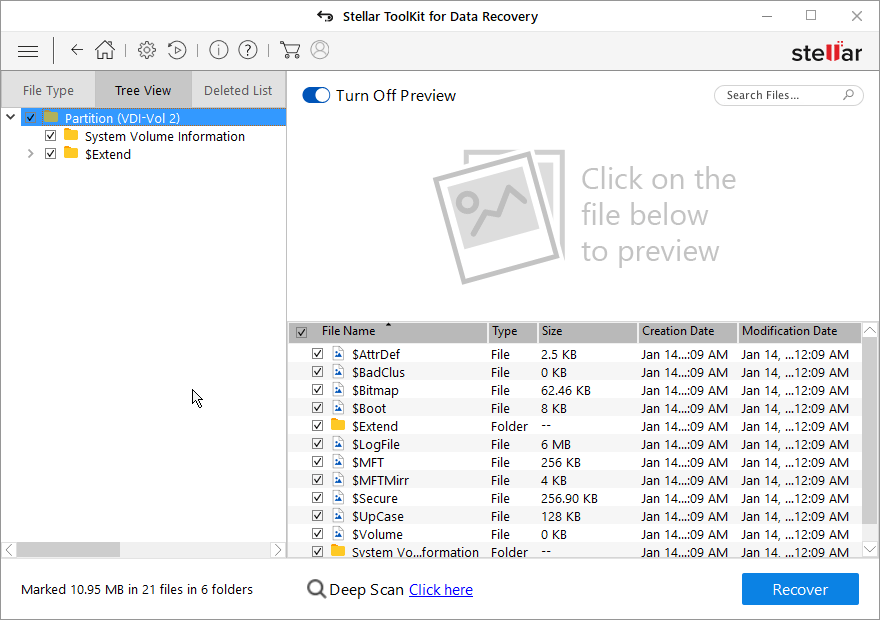

Data Preview

After the scan, select the data you want to recover. Use the search bar to find the desired data quickly. You may click on the file to see its preview before saving the data

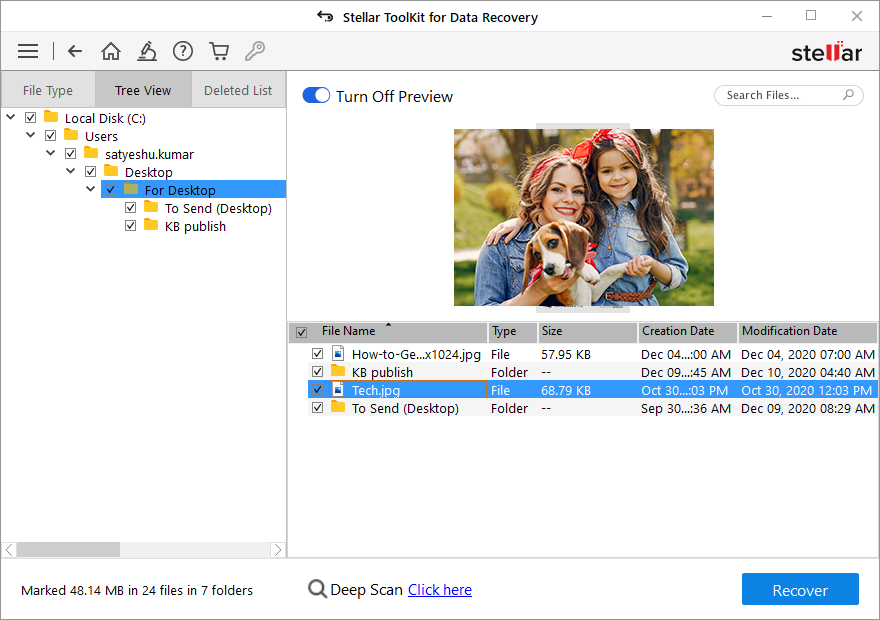

Previewing Data

Click ‘Recover’ and then click ‘Browse’ to choose a save location on your system drive or external storage media

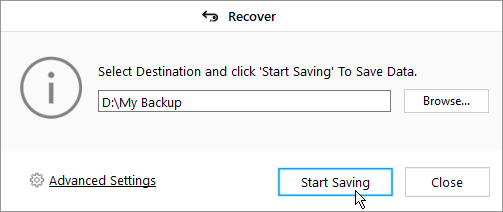

Save Recovered Data

Click ‘Start Saving’

NOTE: If the software fails to mount the virtual disk or partitions due to corruption, continue to scan the virtual disk to find the lost partitions and recover data.

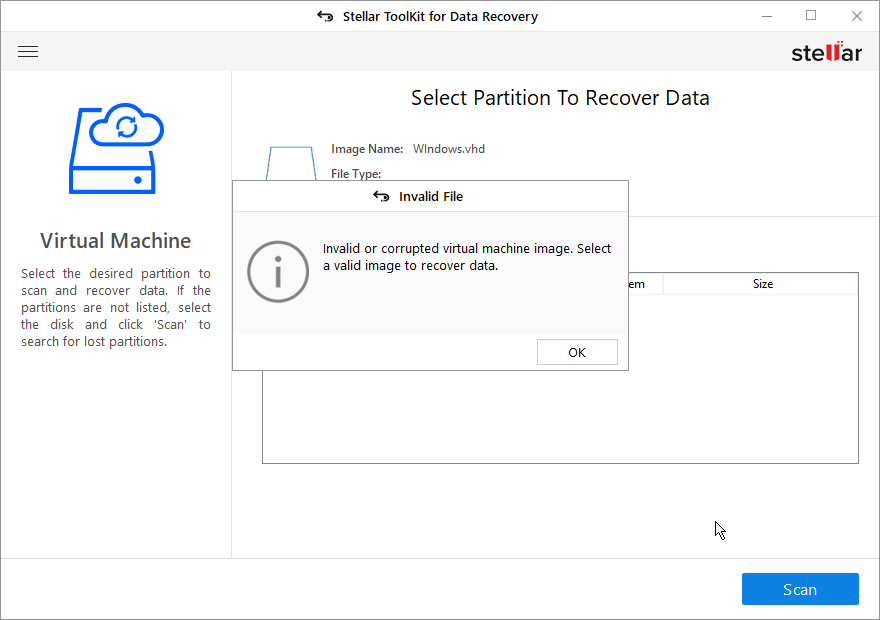

Invalid File Error

Select Partition to Recover Data

For more help, visit our Self Help & Support section.
